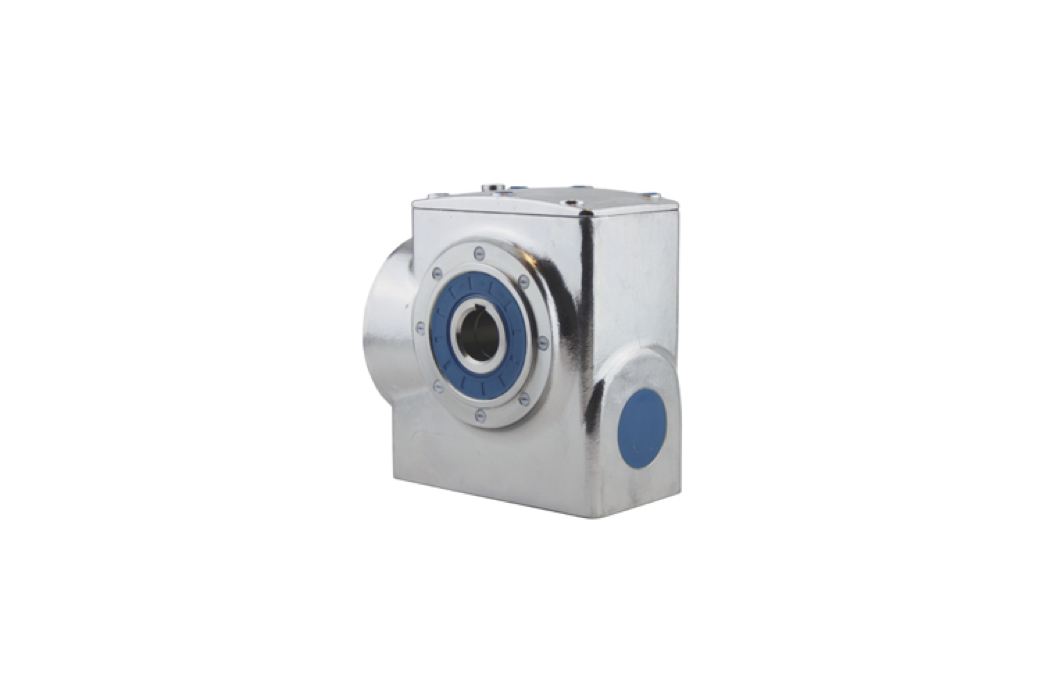

FSA Series

Maxi Hygienic FSA series stainless steel worm gear reducers are designed for use in the food industry. The major dimensions match those commonly used in this sector, which makes replacement of old, cast iron, painted or coated drives an easy task that can often be accomplished without any modifications to existing equipment.

The smooth and rounded organic design makes this series ideal for virtually all applications in the food and beverage industry, whilst the robust engineering and execution even make it well suited for situations requiring high secondary torque and transmission ratios.

FSA Series Features

4 different frame sizes 38, 48, 58 and 68

Secondary hollow shaft sizes 20, 25, 30, 35, 40 and 45mm (other sizes on request)

Ratios from 6.8:1 to 217.41:1
Output torque up to 520 Nm
Power up to 5.5 kW
Filled with USDA H1 foodgrade lubrication
High quality electro polished stainless steel AISI 316 – Round and easy cleanable design

Interchangeable with common brands
IEC direct motor build possible
No tagplates, specifications are etched on the surface.- Stainless steel AISI 316 debreather
Blue oil seals

FSA Series Options

Output flanges
Easy clean open and closed shaft covers
Easy clean torque arm
Lubrication with Halal, Kosher or Nut free certification.- Mirror polishing

Single sided solid output shafts on request
