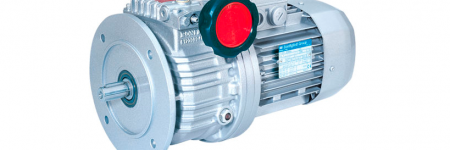

The Bonfiglioli range of mechanical speed variators comes with IEC motor adaption and fits between the electric motor and the gearbox. They are used to control speed gearbox input speed via either a manual handwheel, servo or speed gauging kit.
All Torque Transmissions represents Bonfiglioli in both Victoria and New South Wales.
Max. to Min. Speed Setting
5.2 times
∞ Reduction through a differential unit
Mechanical Rating (n1 = 1400 min-1)
0,18 kW … 9,2 kW
Additional Helical Reduction
iN = 2,5 … 6,3
Output Configurations
Foot and Flange mount
Metric or Inch series Solid Output shaft
Compact and IEC Match With Helical and Worm Gear Units
Speed Setting
Manual Through a Handwheel
Remotely Controlled Through a Servo Mechanism
Speed Gauging Kit c/w Display as an Option
Input Configurations
IEC and NEMA motor Adaptors
Solid Input Shaft
Applicable AC motors
IEC-normalized Motors and Brake motors – BN series
Size and ratings chart
|
Type
|
Couple Nm
|
|---|---|
|
V 0.25
|
4
|
|
V 0.5
|
8
|
|
V 1
|
16
|
|
V 2
|
35
|
|
V 3
|
56
|
|
V 5.5
|
72
|
|
V 10
|
144
|
We are looking forward to CeMAT Australia, which will be held on the 24-26 July 2018 at the Melbourne Convention and Exhibition Centre.
CeMAT AUSTRALIA is in its third year, and has become known as the platform for the latest industry innovations and insights on the future of warehousing, materials handling and logistics. Some statistics from CeMAT include:
In addition to the event being held in Australia, CeMAT is also held in Germany, China, Indonesia, Russia, Canada, Italy, and Turkey.
Featured speakers for the 2018 Melbourne instalment of CeMAT include:

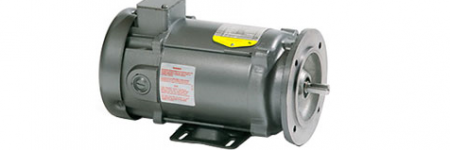

Baldor DC Motors are available in NSW at the new All Torque Transmissions store in Glendenning.
All Torque and Baldor have shared a long history in Australia, with a partnership that now spans decades. Being appointed the authorised stockist of Baldor Electric equipment for Victoria saw the relationship grow, so that now All Torque is an authorised distributor for New South Wales as well.
All Torque keeps IEC flange-mounted DC motors in stock in Glendenning, alongside some NEMA-mount motors. This means that urgently-required DC motors are available immediately – with short lead times – to anywhere in New South Wales.
We also keep DC motor controls off the shelf, which can be supplied as a package with the DC motor.
Our Glendenning contact details are here.
WEG’s W22 high performance electric motor has been in the marketplace for over eight years and in that time has become a customer favourite.
The fully ground-up designed W22 encompasses the following features:
Optomised cooling system
Low noise level
Integrated solid feet
Tough construction
Larger connection box
Adaptable technology
Extended lifetime on VFD application
Superior efficiency
Low energy consumption

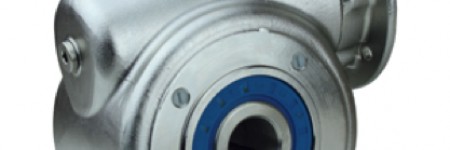

Maxi Hygienic is the name of a brand new range of stainless steel gearboxes that All Torque Transmissions has introduced to Australia. The FV Series of stainless steel wormboxes are in stock now.
