Maxi Hygienic Stainless Helical-Bevel Gearbox

November 07, 2021
by Peter
fka, maxi hygienic
Comments are off

Maxi Hygienic FKA series stainless steel helical-bevel gear reducers are designed for use in the food industry. The major dimensions match those commonly used in this sector, which makes replacement of old, cast iron, painted or coated drives an easy task that can often be accomplished without any modifications to existing equipment.

Maxi Hygienic Design Benefits

The smooth and rounded organic design makes this series ideal for virtually all applications in the food and beverage industry, whilst the robust engineering and execution even make it well suited for situations requiring high secondary torque and transmission ratios.

Maxi Hygienic Helical-Bevel Features

  • The FKA series offers a wide range of transmission ratios. The use of helical-bevel gears results in high efficiency
  • The smooth design contributes to an attractive appearance, also making it well suited for use in the food industry
  • Made of electropolished 316 stainless steel
  • Easy-clean open and sealed shaft covers made of 316 stainless steel for extra hygiene
  • Stainless steel, hollow secondary shafts, optionally with shrink-disc and cover
  • Easy-clean 316 stainless steel torque arms and base plates
  • Synthetic H1 food-grade lubricants standard
  • Every drive is leak tested at 100% pressure
  • No name tags on the drive. The type designation and specifications are etched on the drive, preventing the build-up of contaminants and bacterial growth that would otherwise occur behind the name plate

Match With Maxi Hygienic Full Stainless Motor

Supporting our Maxi Hygienic range of stainless steel gearboxes is our range of full stainless steel electric motors.

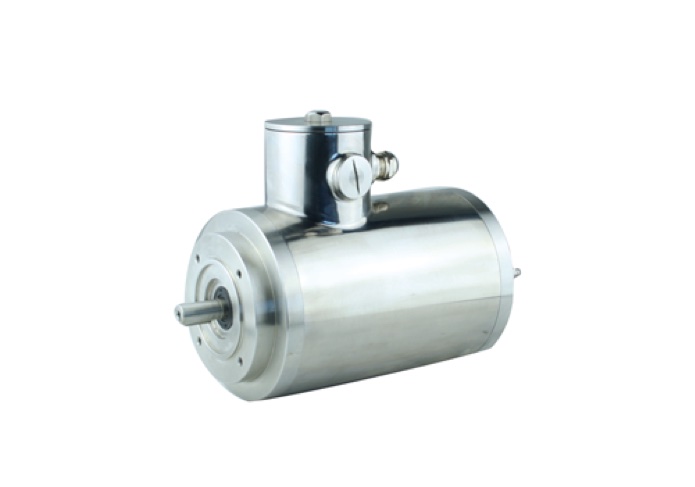

Maxi Hygienic Motors

  • From 0.75kW up to 7.5 kW TEFC (Totally Enclosed Fan Cooled)2 pole, 4 pole and 6 pole versions as standard
  • 8 pole versions on request
  • Round O-ring sealed terminal box
  • O-Ring sealed bearing shields
  • IP66 / IP69(K) versions
  • Isolation Class F
  • Build in PTCs
  • No tagplate, technical specifications are engraved in the housing surface
  • Quality C3 bearings
  • IE2 and IE3
  • Special pressure anti condensation debreather
