ISAF Mounted Spherical Roller Bearings

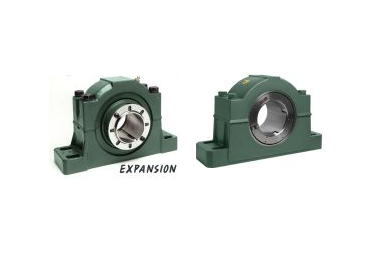

dodge isafISAF – Easy On / Easy Off Push-Pull Adaptor Mount System

The Dodge ISAF bearing uses a thin wall push-pull adapter system that achieves clearance setting without the use of feeler gauges. The ISAF bearing is installed by turning the locknut clockwise and removed by a counterclockwise rotation. Installation and removal can be accomplished in 15 minutes or less.

Cost-Saving Installation

• Factory lubed, sealed and adjusted, ready to slip onto the shaft
• Adaptor sleeve concentricity virtually eliminates fretting corrosion
• Field convertible from non-expansion to expansion and expansion to non-expansion
• Elongated pillow block bolt holes to facilitate mounting

ISAF – Better Sealing Options

For low and medium speeds, the TRIDENT™ seal is a triple-lip and a face-rubbing seal that offers an improvement over other systems. While running, the TRIDENT™ seal provides 100% contact at 100% constant pressure, 100% of the time. This patented seal provides a flinger, shielding the seal and bearing from contamination and damage for greater protection. An exclusion lip that makes contact with the flinger provides an additional barrier against contaminants. Seal/land positive contact up to ±1 degree of misalignment.

For high speed or high temperature applications there is a patented Labyrinth seal option that provides excellent sealing for relatively clean or hot environments. It also offers a 15% increase in maximum speed over standard SAF adapter mounted sphericals of the same shaft size. Flinger shields the seal and bearing from contamination/damage. Seal operates up to ±1 degree of misalignment.

Features

• General-purpose, high-capacity, double-row spherical roller bearings.
• Mounted in two-piece, precision-machined ASTM A48 Class 30 cast iron housings.
• Interchangeable with SAF style pillow blocks
• Patented adapter mounting system
• Easy installation – no feeler gauges needed
• Easy removal – no torches, sledgehammers or special tools needed
• Factory lubed, sealed and adjusted, ready to slip onto the shaft
• IMPERIAL adapter sleeve concentricity virtually eliminates fretting corrosion
• Field convertible from non-expansion to expansion and expansion to non-expansion
• Elongated pillow block bolt holes to facilitate mounting
• Dodge TRIDENT™ triple lip seal provides superior sealing system
• Labyrinth seal available for high speed or high temperature applications
• Up to ±1° misalignment capability
• Seal land on OD of inner ring maintains full contact pressure even when misaligned
• 2 bolt pillow blocks in sizes 1-7/16″ to 3-7/16”
• 4 bolt pillow blocks in sizes 2-7/16” to 7”
