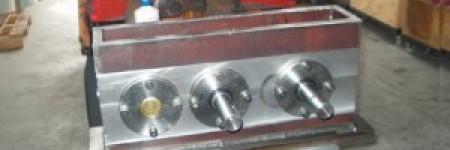

At All Torque, one of our greatest strengths is to come up with in-house answers to power transmission design problems, using a mixture of products which are often from different manufacturers.
Sometimes, there is only one answer to a problem.
When customers come to us with issues in power transmission, there are normally a few ways to solve the problem. Sometimes, there is only one way, although the one way may involve utilising disparate components.
Combining our own manufacturing and machining capabilities with standard product offerings, we arrive at solutions that are seldom available from a single-brand supplier.
Australia has a diverse history of mechanical power transmission equipment. A lot of it has come in from overseas on machinery and it is not supported in Australia, or even worse, is obsolete. We can consider the design requirements of the application and offer a suitable alternative.
As distributors for Victoria, NSW and Queensland, we stock Bonfiglioli’s full range of VF and W series worm gearboxes in all of our branches. The W range is modular, which enables us to attach motor flanges, output flanges and output shafts from stock.
Bonfiglioli’s range of wormboxes is the workhorse seen behind many applications, but are especially prevalent in mixing and conveying roles, where their standard output shaft sizes make them extremely adaptable.
The full VF/W Series Bonfiglioli worm gearboxes range of catalogues can be downloaded by clicking here.
The VF series (VF27, VF30, VF44 and VF49) comes standard with a B14 motor flange attached.
Torque Range
13 Nm… 7,100 Nm
Mechanical Rating (n1= 1400 min-1)
0,04 … 75 kW
Gear ratios
7 … 10,000
Output Configurations
Keyed Hollow Shaft
Plug-in Solid Output Shaft
Torque Limiter as an Option
Input Configurations
VF and W: IEC-normalized motor adapter
VF and W: solid input shaft
Applicable AC motors
VF and W: IEC-normalized motors and brake motors – BN series/BE series
W: integral motors and brake motors series M/ME series
Single and dual speed motors
Main Brake Features
DC and AC supply
Faster Brake Engage/Disengage through Electonically
Controlled AC/DC Rectifier type SB, NBR, SBR (options)
Main Motor Options
Thermistors and Thermostates sensor
Separate Supply Forced Ventilation
Line Driver and Push-Pull Incremental Encoder
The full VF/W Series Bonfiglioli wormboxes range of catalogues can be downloaded by clicking here.
