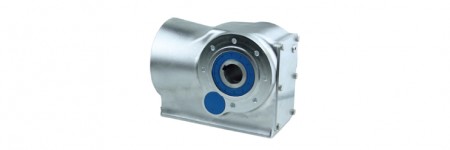

Maxi Hygienic FKA series stainless steel helical-bevel gear reducers are designed for use in the food industry. The major dimensions match those commonly used in this sector, which makes replacement of old, cast iron, painted or coated drives an easy task that can often be accomplished without any modifications to existing equipment.
The smooth and rounded organic design makes this series ideal for virtually all applications in the food and beverage industry, whilst the robust engineering and execution even make it well suited for situations requiring high secondary torque and transmission ratios.
Supporting our Maxi Hygienic range of stainless steel gearboxes is our range of full stainless steel electric motors.

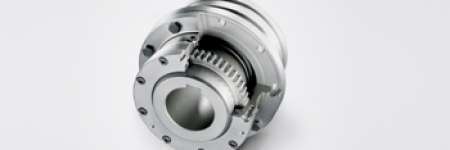

The double-jointed gear couplings of the ZAPEX ZW series compensate angular, parallel and axial misalignment of shafts. They are particularly suitable for use under rough operating conditions such as drives in the iron smelting and cement industry.
The series comprises 31 sizes of which many are available ex stock. In addition to the standard series, couplings up to 10,000,000 Nm can be offered.
Zapex coupling types are constructed on a modular principle, so application-related solutions can be delivered quickly. This coupling requires very little maintenance, with regular grease changes at the prescribed intervals prolonging coupling life.

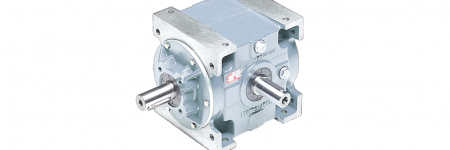

The RAN range from Bonfiglioli offers a series of mitre bevel gearboxes with options for shaft arrangement, shaft direction of rotation, and input style.
One significant benefit is that RAN gear units in frame sizes 8, 15, 18.14, 20, 20CAVO, and 25 are packed with “long life” synthetic grease.
Sizes RAN 24, RAN 1, RAN2, and RAN2R factory filled with “long life” synthetic oil. In the absence of contamination, periodical oil changes are not required.
Technical Data
Torque Range
3 Nm… 3.000 Nm
Mechanical Rating (n1= 1400 min-1)
0.15 kW … 91 kW
Gear ratios
1,0 … 7,4
Shaft Arrangement
Single or Double Shaft Projection
Input
Solid Input Shaft
RAN 1 / RAN 2 / RAN 2R
Input
Solid-Single and Double Projection
Output Shaft
Keyed Hollow
Gear Ratios
i = 3
Rated Thrust Capacity
RAN 1 50000 N
RAN 2 80000 N
RAN 2R 150000 N
Size and ratings chart
| Type | Torque Nm |
|---|---|
| RAN 1 | 1.350 |
| RAN 2 | 3.000 |
| RAN 2R | 3.000 |
| Type | Torque Nm |
|---|---|
| RAN 8 | 3 |
| RAN 15 | 8 |
| RAN 18 | 15 |
| RAN 20 | 28 |
| RAN 24 | 80 |
| RAN 25 | 39 |
| RAN 38 | 300 |
| RAN 48 | 600 |
The full range of RAN Bonfiglioli bevel gearbox catalogues can be downloaded by clicking below.
All Torque Transmissions has acquired Queensland power transmission business Engineering Transmission Agencies (ETA), with the purchase completed on Tuesday, 29th June, 2021.
ETA’s team in Rocklea has some of the most experienced people in the country, especially when it comes to the Bonfiglioli range. ETA also places a premium on customer service, with same day and breakdown service heavily assisted by local stockholdings.
With this acquisition comes a strengthening of the product offerings of both All Torque and ETA. Our current All Torque West Ipswich team will merge to the existing ETA facility in Rocklea, with its renowned gearbox assembly and repair centre. Everyone at All Torque and ETA is looking forward to the new combined All Torque / ETA brand.
The founder and previous managing director of Engineering Transmission Agencies, Mr. Brian Dwyer, will be retiring after 32 years.
The power transmission industry knowledge base throughout All Torque Transmissions and ETA is served with the alignment of brands already represented by both teams. Bringing them all together only assists with All Torque / ETA’s total product offering in Queensland, New South Wales, and Victoria.
We are excited, and look forward to forging a prosperous and mutually beneficial relationship with existing and new All Torque and ETA customers and suppliers.
