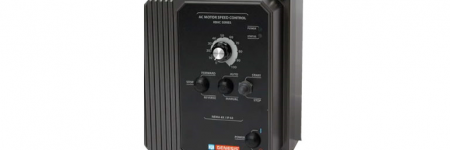

Due to its user-friendly design, the KBAC is easy to install and operate. Tailoring to specific applications is accomplished with selectable jumpers and trimpots, which eliminate the computer-like programming required on other drives. However, for most applications no adjustments are necessary. For more advanced programming, PC based Drive-Link™ software is available.
Main features include adjustable RMS Current Limit and I2 t Motor Overload Protection.2 In addition, Adjustable Slip Compensation with Static Auto-Tune and Boost provides high torque and excellent load regulation over a wide speed range. Power Start™ delivers over 200% motor torque to ensure startup of high frictional loads. Electronic Inrush Current Limit (EICL™) eliminates harmful AC line inrush current. A Run/Fault Relay is provided, which can be used to turn on or off equipment or to signal a warning if the drive is put into the Stop Mode or a fault has occurred. The drive is suitable for machine or variable torque (HVAC) applications. Also, a jumper is provided for selection of Regenerative or DC Injection Braking.
Standard front panel features include diagnostic LEDs for power on and drive status, a Start/Stop Switch, and a Main Speed Potentiometer. Other features include a Barrier Terminal Block to facilitate wiring of the AC line and motor, adjustable trimpots (MIN, MAX, ACCEL, DECEL, COMP, CL, JOG, BOOST), customer selectable jumpers (Line Voltage (dual voltage models only), Motor Horsepower, Automatic or Manual Start/Reset, Motor Frequency, Frequency Multiplier, Fixed/Adjustable Boost, Regenerative/Injection Braking, “Run” or “Fault” Output Relay Operation, NO/NC Stop Contact, Constant/Variable Torque, Factory Assignable Function).
Optional accessories include: Forward-Stop-Reverse Switch, On/Off AC Line Switch, Run-Stop-Jog Switch, Signal Isolator, Auto/Manual Switch, Class “A” AC Line Filter, Multi-Speed Board, Programming Kit, Modbus Communication Module, and Liquidtight Fittings. A connector is provided for easy installation of accessories.
KBAC datasheet kbac
KBAC manual kbac manual
KBAC options…
KBAC F-S-R (Forward-Stop-Reverse) Switch Kit 9480
KBAC Auto/Manual Switch Kit 9481
KBAC Run-Stop-Jog Switch Kit 9340
KBAC-24D Power On/Off Switch Kit 9482
KBAC-27D Power On/Off Switch Kit 9523
SIAC (KBAC Signal Isolator w/Run Relay) 9488
RFAC-24 KBAC CE Approved Built-in AC Line Filter (Class A)

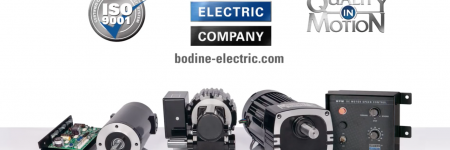

Represented in Australia by All Torque Transmissions, Bodine gearmotors and motors are designed for demanding industrial and commercial applications such as medical devices, scientific and laboratory equipment, labeling equipment, printing presses, packaging equipment, and factory automation.
Bodine Electric is headquartered in Northfield, Illinois (20 miles north of Chicago) with manufacturing and assembly operations in Peosta, Iowa, U.S.A. Bodine’s quality management system is certified to ISO 9001.
Sonia Bonfiglioli has been awarded Entrepreneur of the Year by Ernst & Young Italy, in the process becoming the first woman to receive the honour.
The Ernst & Young Entrepreneur program originated in the US in 1986, and now encompasses more than 50 countries. The program aims to recognise the world’s most successful and innovative entrepreneurs, by identifying and rewarding the contributions and achievements of entrepreneurs within successful growing, dynamic businesses. Judging is conducted by a panel of previous award winners and individual business leaders from around the world.
Six criteria are included in the judging decision:
All Torque Transmissions and Bonfiglioli have enjoyed a partnership for nearly two decades and in this time, our relationship has grown very strong. We are delighted with the news that Sonia has been recognised for her efforts on a global scale and look forward to many more years together.
Electric motors are given a duty cycle rating based on required running conditions, which helps to determine the correct motor to select in a particular application.
The International Electrical Commission (IEC) has categorised eight specific electric motor duty cycles, with each given an ‘S’ rating. Reference is made to IEC 60034-1, Rotating electrical machines – Part 1: Rating and performance:
S1 Continuous Duty – Designed for applications where the motor works at a constant load, long enough to reach temperature equilibrium. This is the standard rating for the majority of electric motors and is used where the operating conditions are not otherwise specified.
S2 Short-time Duty – Designed for constant load applications, where the run time is not long enough to reach temperature equilibrium. Non-run periods are long enough for the motor to return to ambient temperature.
S3 Intermittent Duty – Sequential, identical run and rest cycles with a constant load where temperature equilibrium is not reached. Starting current has little effect on temperature rise.
S4 Intermittent Duty with Starting – Sequential, identical start, run and rest cycles with constant load. Temperature equilibrium is not reached, but starting current affects temperature rise.
S5 Intermittent Periodic Duty with Electric Braking – Sequential, identical cycles of starting, running at constant load and running with no load. No rest periods.
S6 Continuous Operation with Intermittent Load – Sequential, identical cycles of running with constant load and running with no load. No rest periods.
S7 Continuous Operation with Electric Braking – Sequential identical cycles of starting, running at constant load and electric braking. No rest periods.
S8 Continuous Operation with Periodic Changes in Load and Speed – Sequential, identical duty cycles run at constant load and given speed, then run at other constant loads and speeds. No rest periods.
WEG W21 and W22WEG motors kept in stock by All Torque Transmissions are all rated for S1 continuous duty and are therefore usable in all applications where motor power is sufficient to deliver the required torque.
